Specifications
Insulating Body: | Ceramic |
Material: | PES |
Cover Material: | Visible melting-element |
Interrupting Rating: | 2,000A @58 VDC |
Complies with: | IS08820-6,DIN 72581-5,UL248 Specia |
CULus Recognized: | PurposeFuses |
Ordering Information
Part Number | Package Size |
FKYCF(MRBF)-xxx-1 | 100 |
Time-Current Characteristics
%of Rating | Opening Time Min/Max(s) |
100 | 360,000 s/- |
135 | -/3,600 s |
150 | 1s/600 s |
200 | 0.200s/60s |
300 | 0.050s/1.5s |
400 | 0.020 s/0.50s |
600 | －/ 0.2 s |

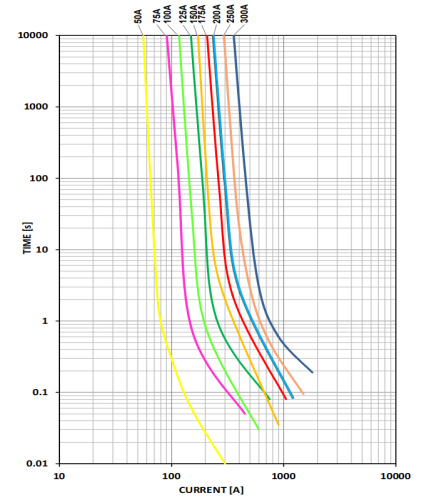

Pre-Arcing Time-Limits
FI=1.25(max.operating current: 0.8x Irat at 23℃)

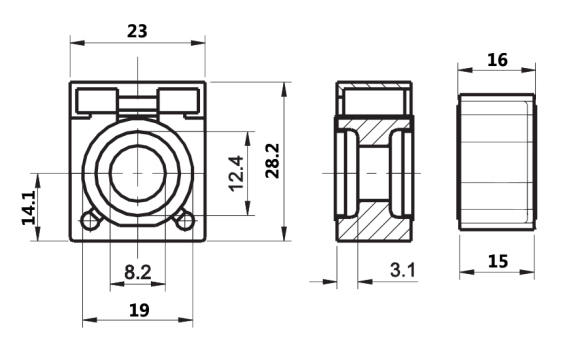

Dimensions(mm）
<
<
<
